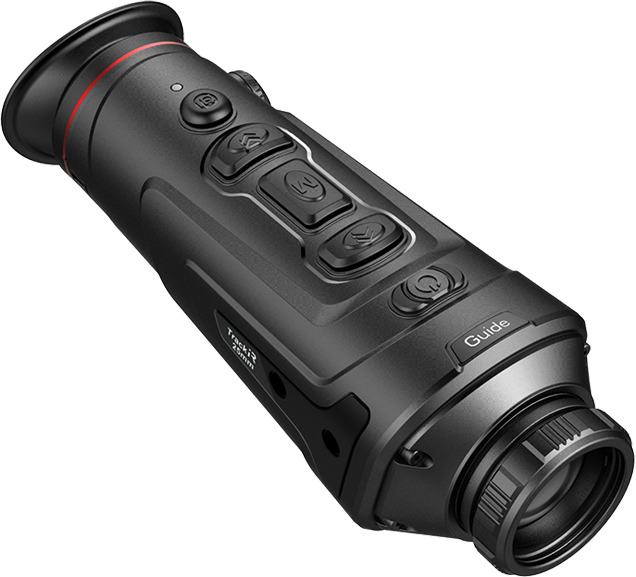

The TrackIR Pro series from Guide offer hunters a hand-held thermal imaging monocular, that has been developed from the ground up by hunters for hunters. Featuring a 1280x960 HD display it provides crisp and reliable imaging in any condition. With 50hz frame rate the TrackIR has smooth zoom transitions alongside sharp thermal imaging throughout dynamic and rapid motion in distance. Built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions are also present. The unit also supports a wide range of connecting accessories to help realize more functions and get the most out of the TrackIR.
Features
- Excellent concealment: Anti light-leakage eyepiece, silent button operation and a noiseless shutter calibration all combine to help prevent detection.
- 1280x960 HD Display: Full Colour 0.4" screen with 1280x960 pixels provides sharp images almost like watching on a 22" tv.
- Smooth Zoom: Via long button press the unit will seamlessly transition from x1 - x8 with little to no screen tearing or lag.
- Stadiametric Rangefinder: The Stadiametric range finder can accurately measure ranges of objects with a known height. The information can then be shown in real-time on the unit or on the mobile app.
- Multiple Scenes: The unit is fitted with the ability to change scene to offer enhanced image quality based on the environment.
- Rugged and Durable: The Unit casing is durable with IP66 protection technology that has passed a 1m drop test. This makes the unit suitable for harsh conditions.
- External Accessories: Attachment points to equip a standard Picatinny rail for accessories such as IR lighting. A soft rubber cap covers the USB Type C and Micro HDMI connection points.
- Battery: A large 6000mAh battery has been included which is almost double the capacity of the thermal market average.
Specifications
- Detector Type: 640×480@12μm, VOx
- Spectral: 8μm～14μm
- NETD: ≤50mk
- Range: Detection range - 800m, Recognition range - 400m
- Lens: 19mm
- Adjustable Diopter: -4~＋2
- Field of View: 22.9°×17.2°
- Display: 1280×960, 0.4 inch
- Frame Rate: 50Hz
- Magnification: x1.1~8.8
- Digital Zoom: 1x - 8x
- Colour Palettes: White Hot, Black Hot, Iron Red, Blue Hot, Adjustable Red Hot
- Scenes Modes: Enhanced, Highlight, Natural
- Picture-in-picture: Enlarged image can be displayed in multiple locations on screen.
- Functions: Photo, Video, Hotspot tracking and Stadiametric rangefinder
- Wi-Fi/App: Compatible with Android or IOS
- Compensation Modes: Auto Compensation / Shutter Compensation / Scene Compensation
- Battery Type: Internal Li-ion battery 6000mAh
- Battery Life: 4.5 hours of constant use
- USB: Type C (USB 2.0 standard)
- Video Output: Micro HDMI
- Memory Card: Supports up to 16GB
- Operating Temperature: -10℃～50℃
- Dimensions: 192×65×71mm
- Weight: 490g
- Package Contents: Power adapter, USB cable, Micro HDMI cable, Lens cover, Wrist strap, Shoulder strap, Lining package, Quick Start Guide
